Hardware Platform Requirements:
|
Operating System |
2 x 256GB SSD drives - Windows 10 Enterprise |
|
HDD/SSD Per Chassis |
1-8 Slots |
|
ECC Memory Per Chassis |
Up to 3TB ECC DDR4-2933MHz RDIMM/LRDIMM |
|
CPU Type Per Chassis |
Dual 2nd Gen Intel® Xeon® Scalable Processors or Dual Intel® Xeon® Scalable Processors |
|
Graphics Options |
NVIDIA Quadro [RTX4000, RTX5000, RTX6000 or RTX8000] |
|
Note Options |
HDD Options: 4, 8, 12 or 14 TB Enterprise SATA |
|
Video I/O Options |
IO Decklink Card or IO AJA Card |
|
Power Supply |
1100W/1600W Redundant Power Supplies |
Ordering information:

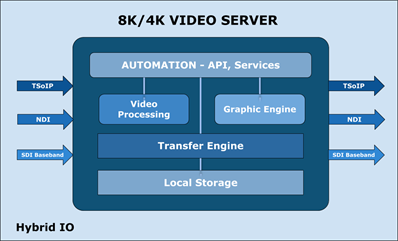

ULTRA-X CLOUD READY RECORD/PLAYOUT SERVER
|
Ultra-X 8K Out 8K SDI Playout Option. 8k playout over 4x 12G SDI interface. Require SDI I/O Option Ultra-X 8K In 8K SDI Ingest Option. 8K ingest over 4x12 G SDI interface. Require SDI I/O Option Ultra-X Rec Up to 4k record Option. Record up to 4K Resolution live video over SDI or IP. H265 Codec, 4:2:0,4:2:2 , 8-10 bit, HDR and SDR. Ultra-X 8k Rec 8K Record option. Record 8k video in H265 live video over SDI or IP. H265 Codec, 4:2:0,4:2:2 , 8-10 bit, HDR and SDR. Ultra-X Graph Realtime Branding. Integrated CG engine for the best system performance and space saving. AIO CG engine use HML5 for graphic format and animation. Ultra-X MC Master control, The option allow server to get the live video input to server, branding it, let the operator preview it before let it go on-air Ultra-X WEB Web control for playout server Full web control of playout server make system available for clouds installation. Required MAM option |
Ultra-X IP IP input/output. TS and NDI will be right choice for 4k and 8K live video input and output. MainConcept H264 and H265 will be good option to choose for server codec. Ultra-X MAM Integrated MAM option for playout control and integrated playlist control. Studio Studio Automation Studio control option with Low-res preview, playlist control, GPIO connection, voice to intercom countdown. Ultra-X API API option, Full 3 party control integration. Ultra-X Streaming Streaming multiple resolution Encode and stream multiple resolution for OTT application. Ultra-X TS Transport stream output (Multicast MPTS over UDP) option Use this option to work with hardware decoder, TS Mux Support HD/SD MPEG TS over UDP Video Compression: MPEG-2, H.264 MPEG-4 Audio Compression: MPEG1-L2, MPEG-2/MPEG-4 AAC-LC. precision time stamp TS direct to IRD receiver or to Headend MUX |
4K Ingest, BOW, IP Multiview
|
Ingest Ingest Server is a video capture for the video post-production, playout environment. It captures video anytime by manual trigger, locally set schedule, or by PAM system. Metadata can be provided for clips before capture. BOW Use to record the broadcast signal 24/7 in low resolution media for Broadcast Evidence. Overlay timecode on the evidence media. Evidence media can be reviewed and downloaded video segments via web browsers and can be integrated into third party MAM system |
IP Multiview Server IP based multi-image display & monitoring solution targeted at applications where simple and efficient monitoring of audio and video from an IP transport stream is required. It leverages industry Audio/Video Monitoring technology. IP Multiview developed to be use as a tool for digital headend, IPTV networks and sites delivering content to the web and handheld devices. IP Multiview is the solution for decoding, displaying and monitoring multiple IP based video and audio transport streams. IP Multiview can display the decoded video and audio on DVI/HDMI outputs, with support for any display technology on the market. |
